Apricot Designs PP5+1應用實驗案例
PERSONAL PIPETTOR全自動移液工作站是Apricot Designs研發生產的集多種移液功能于一身的緊湊型全自動移液工作站，具有高效、便捷、精準的特性，能同時兼容1/8/12/16/24/96/384通道的液體處理，開放式的設計可以便于整合疊板機和機械臂等。
特點和優勢
1. 集多種移液功能于一身，僅需單擊運行，即可完成多種不同類型的切換；
2. 5個功能板位+1個洗針槽/廢液槽；
3. 1/8/12/16/24/96/384通道移液；
4. Personal Pipettor+無人值守, 可自動更換吸頭；
5. 簡單直觀的iPad/Microsoft Surface™/PC操作界面；
6. 可選擇使用有線或無線操控儀器；
7. 適用于96/384孔板移液和逐行/逐列梯度稀釋;
8. 移液工作站、鎖頭和EZ-Load吸頭三合一，密封良好，確保實驗精確、可靠和可重復；
9. 可搭載洗針系統/條碼掃描/震蕩器/控溫模塊；
10. 可整合微孔板疊板機和機械手，真正實現自動化無人值守；
11. 體積小巧，最大化節省空間，適合放置于多數標準通風櫥。
以下為有關PERSONAL PIPETTOR全自動移液工作站的Application，請參考：
Human Hepatic Stability Screening: a Simplified Higher Throughput Assay and
Evaluation of Different Hepatocyte Preparations
Gary Hingorani, Jianhong Wang, Corey Custer, Kevin Litwiler and Ron Franklin, Array BioPharma Inc., Boulder, CO
In the early stages of drug discovery, hepatic stability screening is an important and widely
used method to assess the metabolic stability as well as predict the in vivo hepatic clearance of new chemical entities. Here we present a simplified higher throughput method for rapid stability screening using hepatocytes in a 96-well format for LC-MS determinations. A set of 24 known drugs was chosen that act as substrates for the major human hepatic P450 and UGT isoforms. The predicted human hepatic clearance for these known drugs was determined using cryopreserved, single donor hepatocyte preparations (In Vitro Technologies), and data were compared to literature values for in vivo systemic clearance.
We were able to rank accurately compounds based on high, medium and low stability by
determining the loss of parent compound at a single time point of 2 hours in comparison to multiple time point assessments. This has resulted in profound savings of compound, time and hepatocytes. Comparative studies with both single and pooled donor hepatocytes, as well as with fresh human hepatocytes, are underway currently.
In recent years, freshly isolated hepatocytes, as well as cryopreserved hepatocytes,
have been used for the prediction of metabolic clearance.1-6 To date, most of the
methods conducted for hepatocyte incubations have made use of vials, tubes, or 24-
well plates with reaction volumes of 0.5 mL or greater. We present here a simplified
100-µL 96-well format for the assessment of hepatic stability and subsequent
prediction of hepatic clearance.
Additionally, in recent months In Vitro Technologies has begun marketing multipledonor pools of cryopreserved human hepatocytes. We were interested in comparing
the predicted hepatic clearance values from our cryopreserved single donor
hepatocytes (lot TPZ, In Vitro Technologies), a cryopreserved 10-donor pool (lot
KDN, In Vitro Technologies), and freshly isolated hepatocytes with observed in vivo
systemic clearance values.
Similar predicted clearance values were generated using either 2 or 4 time
point incubations for the cryopreserved single donor or 10-donor pool.
Using either fresh or cryopreserved hepatocytes to predict hepatic clearance
led to a general underestimation of observed systemic clearance. Similar
results have been reported previously.6 Both of the cryopreserved lots tested here, single donor and 10-donor pool, appear to have a CYP2D6 deficiency.
The single donor of cryopreserved hepatocytes appears to be as predictive as
using fresh hepatocytes in correctly categorizing these drugs by low, medium, or high clearance, when compared with observed in vivo systemic clearance values.
The lowest relative standard deviation was obtained using the cryopreserved single donor preparation.
In vitro stability in the presence of hepatocytes was conducted as follows. Fresh or cryopreserved hepatocytes were thawed if necessary, isolated from shipping media and diluted to a viable cell density of 2 x 106 cells/mL according to the supplier’s guidelines using Krebs-Henseleit buffer (KHB, pH 7.3, Sigma) supplemented with amikacin (84 µg/mL), calcium chloride (1 mM), gentamicin (84 µg/mL), HEPES (20 mM), heptanoic acid (4.2 µM) and sodium bicarbonate (2.2 mg/mL). Viability was determined by trypan blue exclusion using a hemacytometer (3500 Hausser, VWR). A 10-mM DMSO stock solution of each drug was diluted to 2 µM using supplemented KHB buffer to create the working
standard. A 50-µL aliquot of test compound or control was added to each test well of a 96-well polypropylene plate (Costar) immediately followed by the addition of 50 µL of the hepatocyte suspension. One incubation plate was prepared for each timepoint (i.e., 0, 30, 60, and 120 minutes) with samples being prepared in duplicate. For these determinations, experiments were conducted in triplicate.
Incubations were conducted at 37 °C, 5% CO2 and 100% relative humidity in an incubator (Model 2300, VWR). At each timepoint, one incubation plate was removed from the incubator, and a solution containing internal standard (100 µL, 2 µM labetalol) was added to each well. The plate was mixed at 700 rpm for 2 minutes on a plate shaker (IKA MTS 2/4 Digital Microtiter Shaker, VWR) and immediately centrifuged at 2,000 x g for 10 minutes using an Allegra benchtop centrifuge (Beckman Coulter). A 150-µL aliquot of the supernatant was transferred from each well to a 96-well shallow plate (Costar). The plates were sealed using reusable plate mats.
Quantitation was performed using an ion trap LC-MS/MS method (Finnigan). Chromatographic separation was achieved using a YMC ODS AQ C18 column (2.1 x 30 mm, 3 µm, 180 Å) in conjunction with a 6-minute gradient using mobile phases A (aqueous 0.1% formic acid containing 1% isopropanol) and B (0.1% formic acid in acetonitrile containing 1% isopropanol). Mass spectrometric detection of the analytes was accomplished using ESI+ or APCI+ ionization modes. Analyte responses were measured using extracted ion chromatograms of characteristic fragments from the [M+H]+ ion.
Calculations were performed using Excel 2000 (Microsoft).
Methods
Figure 2. Predicting Systemic Clearance from In Vitro Data
Conclusions
A simplified 2-point, higher throughput 96-well assay can be used to rank
accurately the predicted systemic clearance of compounds based on their
high, medium, or low stability in hepatocytes.
Advantages
Assay cost of about $20 per compound
Obtain a measure of variability using duplicate prep
Analytical run time is cut in half (gain 24 hours
instrument time each week)
Better assessment of compounds displaying medium
or low clearance at 120-minute time point
Results & Discussion
• • • • •

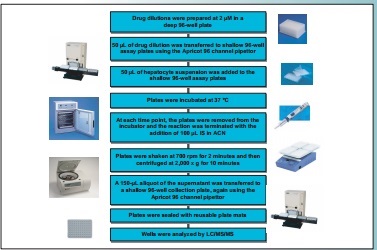

Figure 1. Human Hepatocyte Stability Assay Workflow

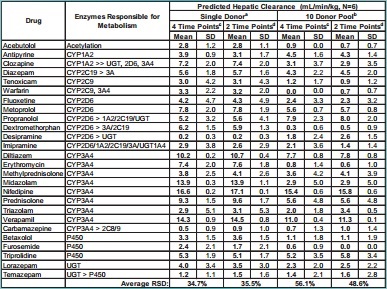

Table 1. Comparison of Predicted Hepatic Clearance Values for SingleDonor or 10-Donor Pooled Hepatocytes Using Either 2 or 4 Time Points
In vitro enzyme kinetics are applicable to in vivo kinetics.
Intrinsic clearance follows first order kinetics.
Metabolic clearance by the liver is the major route of clearance.
Effect of reversible protein binding is not significant.7,8
Assumptions
• • • •
The prediction of in vivo systemic clearance from in vitro metabolic stability is
dependent on several assumptions:
Wells were analyzed by LC/MS/MS
Plates were shaken at 700 rpm for 2 minutes and then
centrifuged at 2,000 x g for 10 minutes
Plates were incubated at 37 °C
50 µL of hepatocyte suspension was added to the
shallow 96-well assay plates
Drug dilutions were prepared at 2 µM in a
deep 96-well plate
50 µL of drug dilution was transferred to shallow 96-well
assay plates using the Apricot 96 channel pipettor
At each time point, the plates were removed from the
incubator and the reaction was terminated with the
addition of 100 µL IS in ACN
A 150-µL aliquot of the supernatant was transferred to
a shallow 96-well collection plate, again using the
Apricot 96 channel pipettor
Plates were sealed with reusable plate mats
• Human Physiological and Biochemical Parameters10
• Liver Weight: 25.7 g liver/kg body weight
• Hepatic blood flow rate (Qh): 20.6 mL/min/kg body weight
• Hepatocyte number: 120 x 106 cells/g liver
• Scaling factor: 3100
• Calculating half-life:
• Calculating intrinsic clearance:
• Calculating hepatic clearance and hepatic extraction ratio assuming a wstirred model and low protein binding)：
a) Cryopreserved single donor, Lot TPZ was purchased from In Vitro Technologies
b) Cryopreserved 10 donor pool, Lot KDN was purchased from In Vitro Technologies
c) Percent compound remaining was assessed at 0, 30, 60, and 120 minutes.
d) Percent compound remaining was assessed at 0 and 120 minutes.
Mean SD Mean SD Mean SD Mean SD
Acebutolol Acetylation 2.8 1.2 2.8 1.1 0.9 0.0 0.7 0.7
Antipyrine CYP1A2 3.9 0.9 3.1 1.7 4.5 1.6 4.3 1.4
Clozapine CYP1A2 >> UGT, 2D6, 3A4 7.2 2.0 7.4 2.0 3.1 3.7 2.9 3.5
Diazepam CYP2C19 > 3A 5.6 1.8 5.7 1.6 4.3 2.2 4.5 2.0
Tenoxicam CYP2C9 3.0 4.2 3.1 4.3 1.2 1.7 0.9 1.2
Warfarin CYP2C9, 3A4 3.3 2.2 3.2 2.0 0.0 0.0 0.7 0.7
Fluoxetine CYP2D6 4.2 4.7 4.3 4.9 2.4 3.3 2.3 3.2
Metoprolol CYP2D6 7.8 2.0 7.8 1.9 5.6 0.7 5.7 0.8
Propranolol CYP2D6 > 1A2/2C19/UGT 5.2 3.2 5.6 4.1 7.9 2.3 8.0 2.0
Dextromethorphan CYP2D6 > 3A/2C19 6.2 1.5 5.9 1.3 0.3 0.6 0.5 0.9
Desipramine CYP2D6 > UGT 0.2 0.3 0.2 0.3 1.8 2.4 2.6 1.5
Imipramine CYP2D6/1A2/2C19/3A/UGT1A4 2.9 3.8 2.6 2.9 2.1 3.6 1.4 1.4
Diltiazem CYP3A4 10.2 0.2 10.7 0.4 7.7 0.8 7.8 0.8
Erythromycin CYP3A4 7.4 2.0 7.6 1.8 0.8 1.4 0.6 1.0
Methylprednisolone CYP3A4 3.8 2.5 4.1 2.6 3.6 4.2 4.1 3.9
Midazolam CYP3A4 13.9 0.3 13.9 1.1 2.9 5.0 2.9 5.0
Nifedipine CYP3A4 16.6 0.2 17.1 0.1 15.4 0.6 15.8 0.6
Prednisolone CYP3A4 9.3 1.5 9.6 1.7 5.6 4.8 5.6 4.8
Triazolam CYP3A4 2.9 5.1 3.1 5.3 2.0 1.8 3.4 0.5
Verapamil CYP3A4 14.3 0.9 14.5 0.8 11.0 0.4 11.3 0.1
Carbamazepine CYP3A4 > 2C8/9 0.5 0.9 0.9 1.0 0.7 1.3 1.0 1.4
Betaxolol P450 3.3 1.5 3.6 1.5 1.1 1.8 1.1 1.9
Furosemide P450 2.4 2.1 1.7 2.1 0.6 0.9 0.0 0.0
Triprolidine P450 5.3 1.9 5.1 1.7 5.2 3.5 5.8 3.4
Lorazepam UGT 4.0 3.4 3.5 3.0 2.3 2.0 2.5 2.2
Temazepam UGT > P450 1.2 1.1 1.5 1.6 1.4 2.1 1.6 2.8
Average RSD: 34.7% 35.5% 56.1% 48.6%
Predicted Hepatic Clearance (mL/min/kg, N=6)
Drug Enzymes Responsible for
Metabolism
Single Donora 10 Donor Poolb
4 Time Pointsc 2 Time Pointsd 4 Time Pointsc 2 Time Pointsd
Fraction Remaining (%)
Predicted CLh (mL/min/kg)
t=30 min.
t=60 min.
t=120 min.
t=240 min.
t=480 min.

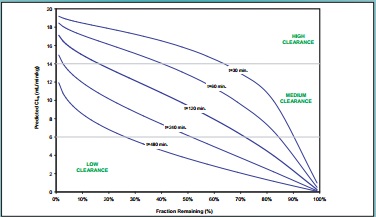

HIGH、CLEARANCE、MEDIUM、CLEARANCE、LOW、CLEARANCE
Figure 3. Theoretical Correlation Between Predicted Human Hepatic Clearance and Fraction of Test Compound Remaining Versus Incubation Time With Human Hepatocytes
CLh (mL/min/kg) with No Noise Predicted CLh (mL/min/kg) with 15% Peak Area RSD
0, 30, 60 and 120 min. (singlicate)
0 and 120 min. (duplicate)

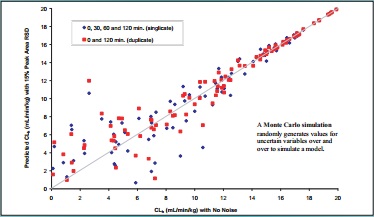

Figure 4. Monte Carlo Simulation of the Effects of 15% Normal Noise inAnalytical Response on Calculated CLh
Average SD Average SD Average SD
Acebutolol Acetylation 5.2 2.8 1.2 0.9 0.0 0.6 0.6
Antipyrine CYP1A2 0.5 3.9 0.9 4.5 1.6 1.9 1.4
Clozapine CYP1A2 >> UGT, 2D6, 3A4 6.1 7.2 2.0 3.1 3.7 4.0 1.5
Diazepam CYP2C19 > 3A 0.4 5.6 1.8 4.3 2.2 2.5 0.5
Tenoxicam CYP2C9 0.04 3.0 4.2 1.2 1.7 3.0 4.2
Warfarin CYP2C9, 3A4 0.05 3.3 2.2 0.0 0.0 1.9 1.7
Fluoxetine CYP2D6 13 4.2 4.7 2.4 3.3 6.2
Metoprolol CYP2D6 15 7.8 2.0 5.6 0.7 4.4 3.0
Propranolol CYP2D6 > 1A2/2C19/UGT 13 5.2 3.2 7.9 2.3 7.2 4.3
Dextromethorphan CYP2D6 > 3A/2C19 8.6 6.2 1.5 0.3 0.6 5.8 5.3
Desipramine CYP2D6 > UGT 10.3 0.2 0.3 1.8 2.4 7.2 6.3
Imipramine CYP2D6/1A2/2C19/3A/UGT1A4 8 2.9 3.8 2.1 3.6 4.5 1.5
Diltiazem CYP3A4 12 10.2 0.2 7.7 0.8 7.0 1.9
Erythromycin CYP3A4 9.3 7.4 2.0 0.8 1.4 4.5 0.9
Methylprednisolone CYP3A4 6.2 3.8 2.5 3.6 4.2 5.8 0.9
Midazolam CYP3A4 9.9 13.9 0.3 2.9 5.0 8.2
Nifedipine CYP3A4 15 16.6 0.2 15.4 0.6 1.2
Prednisolone CYP3A4 9.7 9.3 1.5 5.6 4.8 4.5 3.7
Triazolam CYP3A4 2.9 2.9 5.1 2.0 1.8 2.1 1.8
Verapamil CYP3A4 14 14.3 0.9 11.0 0.4 8.3 1.3
Carbamazepine CYP3A4 > 2C8/9 0.4 0.5 0.9 0.7 1.3 2.5 3.3
Betaxolol P450 4.8 3.3 1.5 1.1 1.8 2.3 1.3
Furosemide P450 1.7 2.4 2.1 0.6 0.9 0.7 1.3
Triprolidine P450 13 5.3 1.9 5.2 3.5 5.9 2.7
Lorazepam UGT 1.1 4.0 3.4 2.3 2.0 2.0 1.3
Temazepam UGT > P450 1.4 1.2 1.1 1.4 2.1 2.1 2.4
Predicted Hepatic Clearance ml/min/kg (N=6) a
Freshd 56.1% 56.6% Drug Enzymes Responsible for
Metabolism Observed in vivo ClSYS ml/min/kg 34.7%
Single Donorb Drugs Ranked Correctly e:
Drugs Ranked Correctly (excluding primary 2D6 substrates) e:
Average:
RSD:
a) Predicted hepatic clearance was calculated using 4 time points (0, 30, 60, & 120 minutes).
b) Cryopreserved single donor, Lot TPZ was purchased from In Vitro Technologies
c) Cryopreserved 10 donor pool, Lot KDN was purchased from In Vitro Technologies
d) Fresh Hepatocytes were purchased from In Vitro Technologies, Tissue Transformation Technologies, and Cellz Direct
e) Ranking was based on high, medium, or low stability. Red indicates an incorrect ranking with systemic clearance.

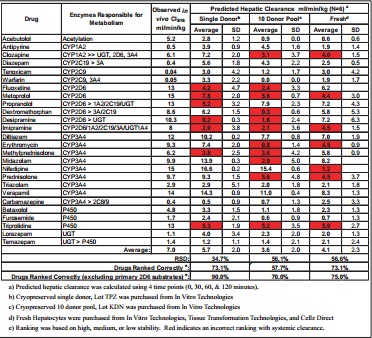

Table 2. Comparison of Predicted Hepatic Clearance Values for Various Human Hepatocyte Preparations with Observed In Vivo Systemic
Observed In Vivo CL (mL/min/kg)
Predicted CL (mL/min/kg)
Single Donor
10 Donor Pool
Fresh

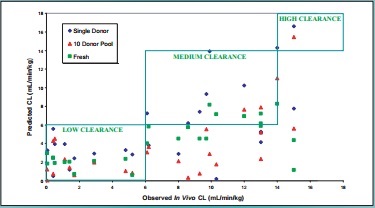

Figure 5. In Vitro - In Vivo Clearance Correlations
Based on these results, we have decided to initiate a screening paradigm of initially evaluating compounds using a single donor of cryopreserved hepatocytes, followed by assessing compounds of interest with fresh hepatocytes on a monthly basis. In this manner, we can screen compounds for metabolic stability using the same lot of hepatocytes and draw comparisons over time for similar chemical series. And we would also reduce the liabilities associated from screening with a single donor of cryopreserved hepatocytes.
